35,000 BTU 2 Zone 22.5 SEER2 Ducted Mini Split AC, 12K + 18K, White

Overview:

• 2-zone 35000 BTU concealed ducted mini split system brings discreet comfort to multiple areas.
• Adjust temperature independently across 2 zones for optimal comfort.
• Inverter technology maintains steadier temperatures with smarter energy use.
• R454B refrigerant supports more responsible, forward-looking operation.
• Built-in versatility for every situation with 7 modes and 8 fan speeds.
• Enjoy peaceful sleep without distractions with sleep mode and screen off function.
• Effortless convenience with smart control options and WiFi connectivity.
• Chassis electrical heating ensures reliable performance in colder conditions.
• Ideal for homes, offices, and light commercial spaces.
• Ducted design keeps your space neat and discreet.
• Self-clean function makes maintenance a breeze.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.
• Note: Professional installation is required.

Highlights:

• Adjust temperature independently across 2 zones for optimal comfort.
• Inverter technology maintains steadier temperatures with smarter energy use.
• R454B refrigerant supports more responsible, forward-looking operation.
• Built-in versatility for every situation with 7 modes and 8 fan speeds.
• Enjoy peaceful sleep without distractions with sleep mode and screen off function.
• Effortless convenience with smart control options and WiFi connectivity.
• Chassis electrical heating ensures reliable performance in colder conditions.
• Ideal for homes, offices, and light commercial spaces.
• Ducted design keeps your space neat and discreet.
• Self-clean function makes maintenance a breeze.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.

Features:

• Multi-Zone Climate Control: 35000 BTU concealed ducted mini split AC provides powerful and balanced heating and cooling across 2 zones.
• Outdoor Unit Heating: Chassis electrical heating ensures reliable operation in tough weather with -13℉ low ambient heating and 131℉ high ambient cooling.
• Significant Energy Savings: Advanced inverter technology maintains steady temperatures with less energy waste, helping reduce cycling and improve comfort.
• Efficient Operation: 22.5 SEER2 rating and R454B refrigerant support efficient year-round use.
• Multiple Control Options: WiFi enabled ducted mini split AC unit allows use of included remote, wall thermostat, smart app, or voice commands.
• Smart Home Compatibility: Compatible with Alexa and Google Assistant.
• 24H Timer: Allows for scheduled operation.
• Child Lock: Keeps settings secure.
• All-season Companion: 7 modes include auto, cool, heat, dry, heat, fan, ECO, sleep, along with 8 fan speeds for precise comfort.
• Self-Clean Function: Helps keep air paths fresher over time.
• Quiet Operation: Runs with low sound levels as low as 28 dB, offering a peaceful environment for busy households and workplaces.
• Wide Use: Ideal for household and light commercial use, including living room, bedroom, office, restaurant and more.
• Sleep Mode and Screen Off: Enjoy peaceful sleep without distractions.
• Ducted Design: Keeps your space neat and discreet.
• Note: Professional installation is required.

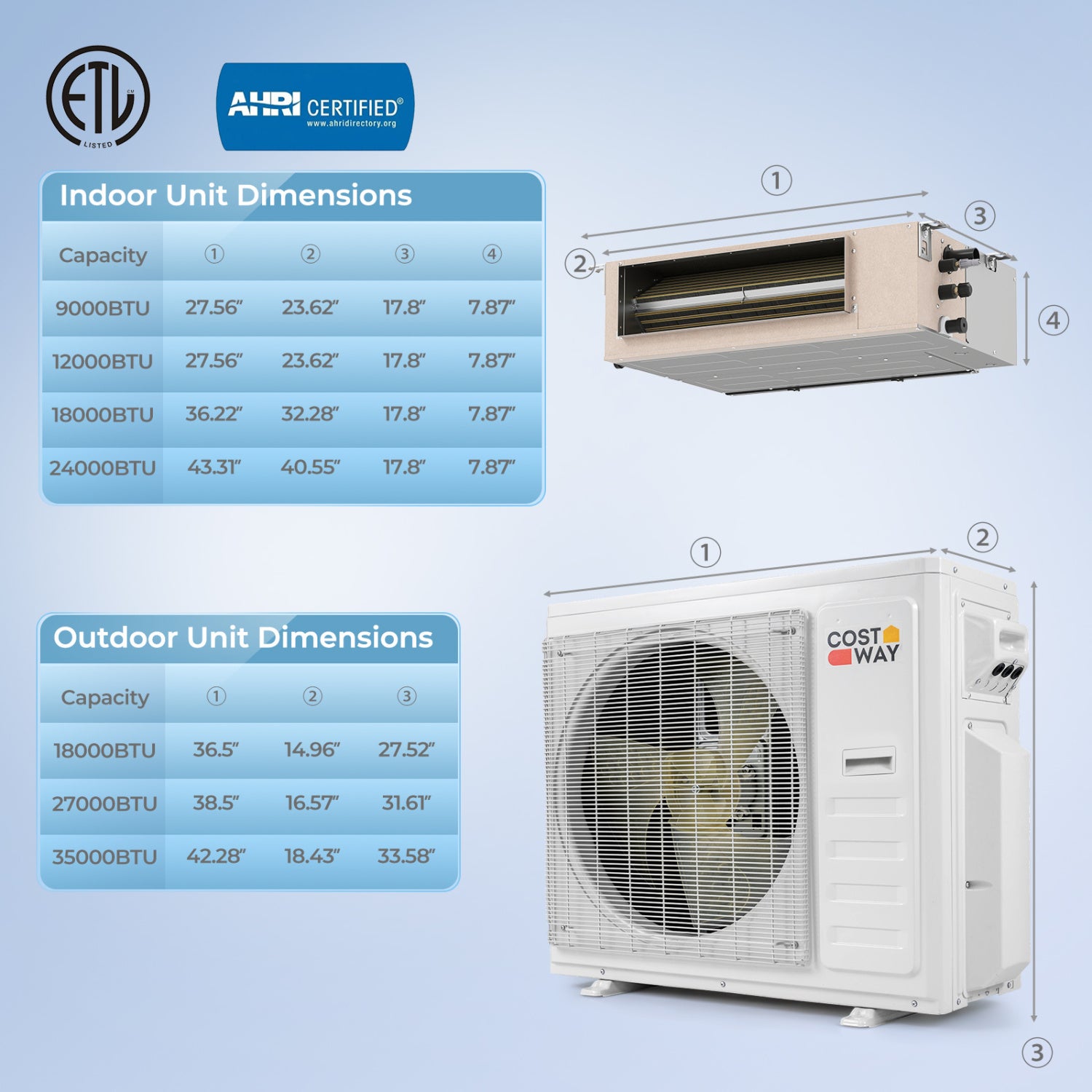

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 27.56 in x 17.8 in x 7.87 in (70.0 x 45.2 x 20.0 cm)
• Indoor Unit Dimensions (12K): 27.56 in x 17.8 in x 7.87 in (70.0 x 45.2 x 20.0 cm)
• Indoor Unit Dimensions (18K): 36.22 in x 17.8 in x 7.87 in (92.0 x 45.2 x 20.0 cm)
• Indoor Unit Dimensions (24K): 43.31 in x 17.8 in x 7.87 in (110.0 x 45.2 x 20.0 cm)
• Outdoor Unit Dimensions (18K): 36.5 in x 14.96 in x 27.52 in (92.7 x 38.0 x 69.9 cm)
• Outdoor Unit Dimensions (27K): 38.5 in x 16.57 in x 31.61 in (97.8 x 42.1 x 80.3 cm)
• Outdoor Unit Dimensions (35K): 42.28 in x 18.43 in x 33.58 in (107.4 x 46.8 x 85.3 cm)
• Net Weight of 9K Indoor Unit: 33.1 lbs (15.0 kg)
• Net Weight of 12K Indoor Unit: 33.1 lbs (15.0 kg)
• Net Weight of 18K Indoor Unit: 39.7 lbs (18.0 kg)
• Net Weight of 24K Indoor Unit: 50.7 lbs (23.0 kg)
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42.0 kg)
• Net Weight of 27K Outdoor Unit: 119 lbs (54.0 kg)
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66.0 kg)
• Diameter of Liquid Pipe: 1/4 in (0.64 cm)
• Diameter of Gas Pipe (9K): 3/8 in (0.95 cm)
• Diameter of Gas Pipe (12K): 3/8 in (0.95 cm)
• Diameter of Gas Pipe (18K): 1/2 in (1.27 cm)
• Diameter of Gas Pipe (24K): 5/8 in (1.59 cm)
• Max Remote Control Distance: 39.2 ft (11.95 m)
• Copper Connection Pipe Length: 16 ft (4.88 m)
• Communication Wire Length: 19 ft (5.79 m)

Specifications:

• Color: White
• Material: Cold-rolled Steel Sheet, Copper, Aluminum
• Multi Zone Combination: 2
• Voltage: 208-230V
• Frequency: 60Hz
• Temperature Setting Range: 60℉~88℉
• Refrigerant: R454B
• Indoor Unit Noise Level: 28 dB
• Coverage Area (9K): 450 Sq.Ft
• Coverage Area (12K): 750 Sq.Ft
• Coverage Area (18K): 1250 Sq.Ft
• Coverage Area (24K): 1500 Sq.Ft
• Dehumidification Capacity (9K): 55.8 Pints/Day
• Dehumidification Capacity (12K): 81.2 Pints/Day
• Dehumidification Capacity (18K): 111.6 Pints/Day
• Dehumidification Capacity (24K): 131.9 Pints/Day
• Maximum Air Flow Volume (9K): 335 CFM/570 m³/h
• Maximum Air Flow Volume (12K): 360 CFM/610 m³/h
• Maximum Air Flow Volume (18K): 500 CFM/850 m³/h
• Maximum Air Flow Volume (24K): 741 CFM/1260 m³/h
• 18K SEER2: 24
• 27K SEER2: 24
• 35K SEER2: 22.5
• 18K HSPF2: 10.5
• 27K HSPF2: 10.5
• 35K HSPF2: 10

Package Includes:

• 1 x Outdoor Unit
• 2 x Indoor Unit
• 2 x 16 ft Copper Connection Pipe - Gas Pipe
• 2 x 16 ft Copper Connection Pipe - Liquid Pipe
• 2 x 19 ft Communication Wire
• 2 x Drain Hose
• 2 x Remote Control & Holder
• 2 x Wall Thermostat
• 2 x Wall Sleeve
• 4 x Tape
• 4 x Putty
• 2 x Screw Kit
• 4 x Wall Cap
• 4 x Mounting Foot Pad
• 5 x User Guide
