35000 BTU 2 Zone 22.5 SEER2 Ducted Mini Split AC-12K + 24K, White

Enjoy discreet multi-zone comfort with this 35,000 BTU concealed ducted mini split system. Control 2 zones independently using inverter technology, R454B refrigerant, 7 modes, 8 fan speeds, WiFi, and voice control for efficient comfort.

Overview:

• 2-zone 35,000 BTU concealed ducted mini split system delivers discreet, balanced comfort for homes, offices, and light commercial spaces.
• Independent zone control and inverter technology maintain steady temperatures with smarter energy use.
• R454B refrigerant, 22.5 SEER2 rating, 7 modes, and 8 fan speeds support efficient year-round heating and cooling.
• WiFi, remote, wall thermostat, smart app, and voice control with Alexa and Google Assistant offer effortless operation.
• Sleep mode, screen off function, 24-hour timer, child lock, self-clean function, and chassis electrical heating enhance comfort and convenience.
• Note: Professional installation is required.

Highlights:

• Adjust temperature independently across 2 zones for optimal comfort.
• Inverter technology maintains steadier temperatures with smarter energy use.
• R454B refrigerant supports more responsible, forward-looking operation.
• Built-in versatility with 7 modes and 8 fan speeds.
• Sleep mode and screen off function for peaceful sleep without distractions.
• Smart control options and WiFi connectivity.
• Chassis electrical heating for reliable performance in colder conditions.
• Ideal for homes, offices, and light commercial spaces.
• Ducted design keeps your space neat and discreet.
• Self-clean function makes maintenance a breeze.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.

Features:

• 35,000 BTU concealed ducted mini split system provides powerful and balanced heating and cooling across 2 zones.
• Independent temperature control across 2 zones for optimal comfort.
• Inverter technology maintains steadier temperatures with smarter energy use and less cycling.
• R454B refrigerant for more responsible, forward-looking operation.
• 22.5 SEER2 rating for efficient year-round use.
• 7 modes: auto, cool, heat, dry, heat, fan, ECO, sleep.
• 8 fan speeds for precise comfort.
• Sleep mode and screen off function for peaceful, distraction-free sleep.
• Smart control options: included remote, wall thermostat, smart app, and voice commands.
• WiFi connectivity and compatibility with Alexa and Google Assistant.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.
• Chassis electrical heating ensures reliable performance in colder conditions.
• Operates in tough weather with -13℉ low ambient heating and 131℉ high ambient cooling.
• Self-clean function makes maintenance a breeze and helps keep air paths fresher over time.
• Quiet operation with low sound levels as low as 28 dB.
• Ducted design keeps your space neat and discreet.
• Ideal for homes, offices, living rooms, bedrooms, restaurants, and light commercial spaces.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit 9K Dimensions: 27.56" x 17.8" x 7.87" (70.0 x 45.2 x 20.0 cm)
• Indoor Unit 12K Dimensions: 27.56" x 17.8" x 7.87" (70.0 x 45.2 x 20.0 cm)
• Indoor Unit 18K Dimensions: 36.22" x 17.8" x 7.87" (92.0 x 45.2 x 20.0 cm)
• Indoor Unit 24K Dimensions: 43.31" x 17.8" x 7.87" (110.0 x 45.2 x 20.0 cm)
• Outdoor Unit 18K Dimensions: 36.5" x 14.96" x 27.52" (92.7 x 38.0 x 69.9 cm)
• Outdoor Unit 27K Dimensions: 38.5" x 16.57" x 31.61" (97.8 x 42.1 x 80.3 cm)
• Outdoor Unit 35K Dimensions: 42.28" x 18.43" x 33.58" (107.4 x 46.8 x 85.3 cm)
• Net Weight 9K Indoor Unit: 33.1 lbs (15.0 kg)
• Net Weight 12K Indoor Unit: 33.1 lbs (15.0 kg)
• Net Weight 18K Indoor Unit: 39.7 lbs (18.0 kg)
• Net Weight 24K Indoor Unit: 50.7 lbs (23.0 kg)
• Net Weight 18K Outdoor Unit: 92.6 lbs (42.0 kg)
• Net Weight 27K Outdoor Unit: 119 lbs (54.0 kg)
• Net Weight 35K Outdoor Unit: 145.5 lbs (66.0 kg)
• Liquid Pipe Diameter: 1/4" (6.35 mm)
• Gas Pipe Diameter - 9K: 3/8" (9.53 mm)
• Gas Pipe Diameter - 12K: 3/8" (9.53 mm)
• Gas Pipe Diameter - 18K: 1/2" (12.7 mm)
• Gas Pipe Diameter - 24K: 5/8" (15.88 mm)
• Max Remote Control Distance: 39.2 ft (11.95 m)
• Copper Connection Pipe - Gas Pipe Length: 16 ft (4.88 m) each
• Copper Connection Pipe - Liquid Pipe Length: 16 ft (4.88 m) each
• Communication Wire Length: 19 ft (5.79 m) each

Specifications:

• Color: White
• Material: Cold-rolled Steel Sheet, Copper, Aluminum
• Multi Zone Combination: 2
• Voltage: 208-230V
• Frequency: 60Hz
• Temperature Setting Range: 60℉~88℉
• Refrigerant: R454B
• Indoor Unit Noise Level: 28 dB
• Coverage Area - 9K: 450 Sq.Ft
• Coverage Area - 12K: 750 Sq.Ft
• Coverage Area - 18K: 1250 Sq.Ft
• Coverage Area - 24K: 1500 Sq.Ft
• Dehumidification Capacity - 9K: 55.8 Pints/Day
• Dehumidification Capacity - 12K: 81.2 Pints/Day
• Dehumidification Capacity - 18K: 111.6 Pints/Day
• Dehumidification Capacity - 24K: 131.9 Pints/Day
• Maximum Air Flow Volume - 9K: 335 CFM / 570 m³/h
• Maximum Air Flow Volume - 12K: 360 CFM / 610 m³/h
• Maximum Air Flow Volume - 18K: 500 CFM / 850 m³/h
• Maximum Air Flow Volume - 24K: 741 CFM / 1260 m³/h
• 18K SEER2: 24
• 27K SEER2: 24
• 35K SEER2: 22.5
• 18K HSPF2: 10.5
• 27K HSPF2: 10.5
• 35K HSPF2: 10

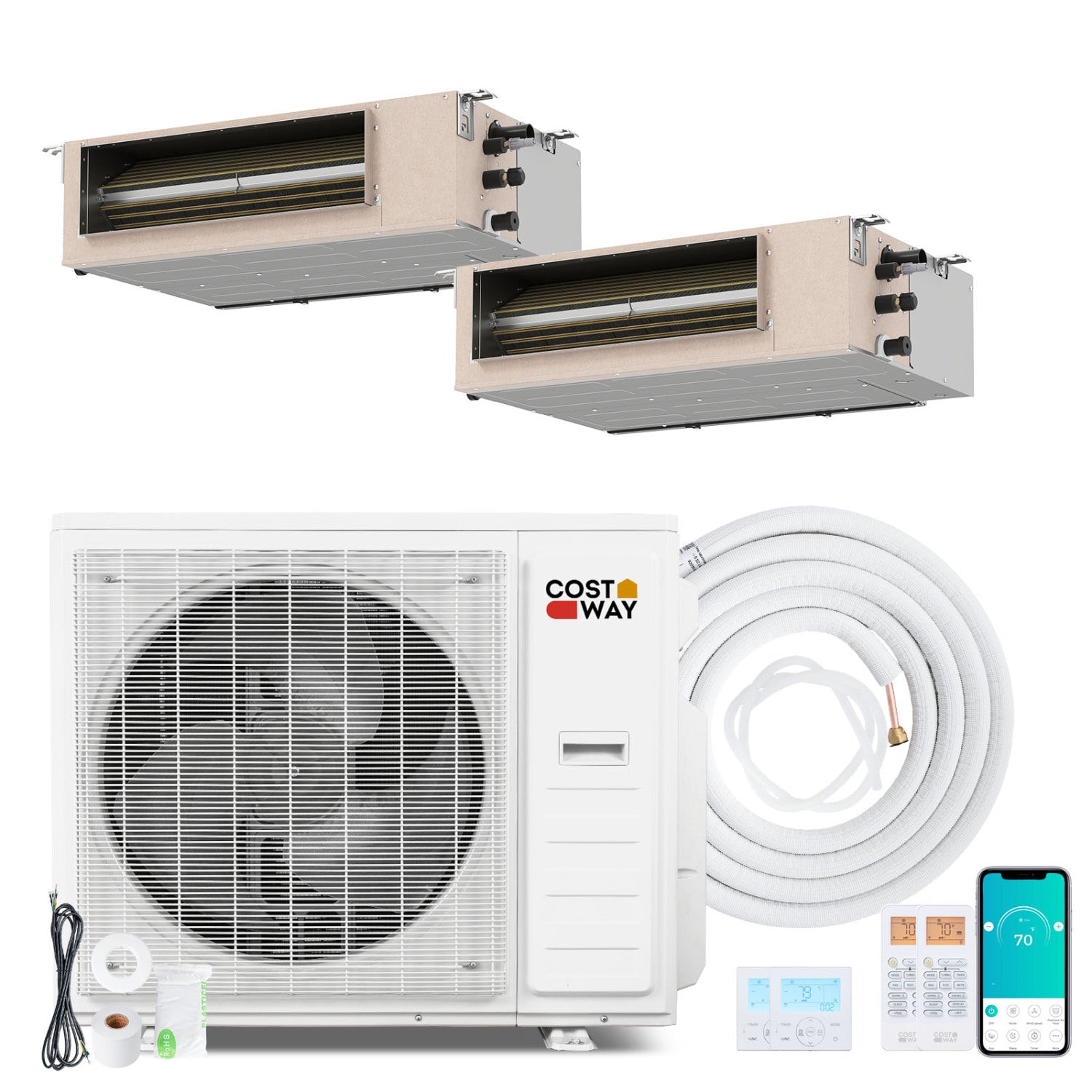

Package Includes:

• 1 x Outdoor Unit
• 2 x Indoor Unit
• 2 x 16 ft Copper Connection Pipe - Gas Pipe
• 2 x 16 ft Copper Connection Pipe - Liquid Pipe
• 2 x 19 ft Communication Wire
• 2 x Drain Hose
• 2 x Remote Control & Holder
• 2 x Wall Thermostat
• 2 x Wall Sleeve
• 4 x Tape
• 4 x Putty
• 2 x Screw Kit
• 4 x Wall Cap
• 4 x Mounting Foot Pad
• 5 x User Guide

Package Quantity: 1 Set
